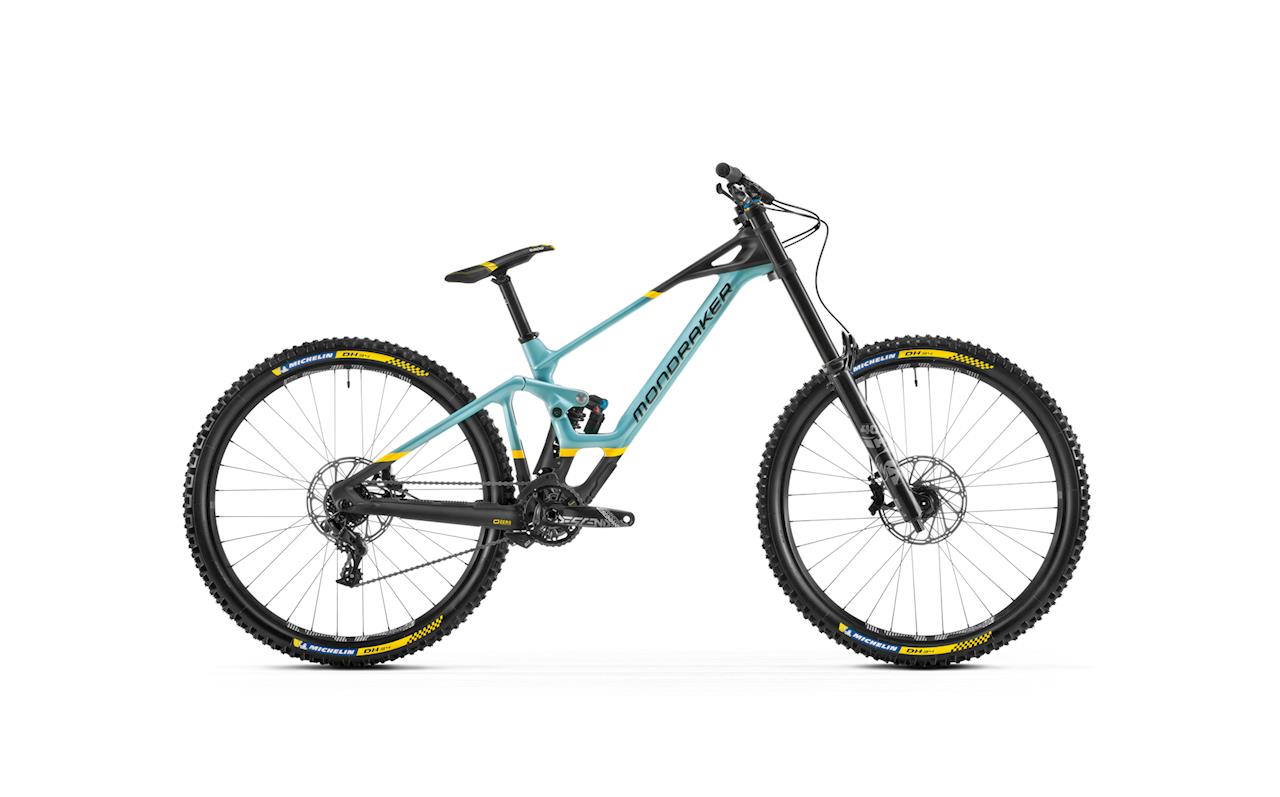

<table style="width: 365px;" border="0" cellspacing="0" cellpadding="0"> <tbody> <tr height="154"> <td width="365" height="154">Summum carbon R má úplně stejný rám jako RR a je k dispozici také s volitelnými koly MX (29" přední kolo a 27,5" zadní kolo), na DH tratích ho uvidíte nejčastěji. Efektivní, rychlý a nezničitelný, budete to vy, kdo bude určovat limity, protože Summum Carbon R si vždy říká o víc.</td> </tr> </tbody> </table>
Rám: Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual raw Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit
Vidlice: Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Hlavové složení: Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Přehazovačka: Sram GX DH, 7s, medium cage, X-actuation 1:1
Přesmykač:
Řazení: Sram trigger GX DH 7s, X-actuation 1:1
Brzdové páčky: Sram G2 RS, SwingLink, tool-free reach adjust
Brzdy:
Kliky a převodníky: Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm
Pedály:
Řídítka: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Představec: Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Sedlovka: SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Sedlo: SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Náboj přední: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Náboj zadní:
Ráfky: e*thirteen LG1 Plus DH, IW29 29
Pláště: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Řetěz: Sram PC1110 11s, Powerlock
Kazeta: Sram PG 720 11-25T, 7s
Dráty: e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers
