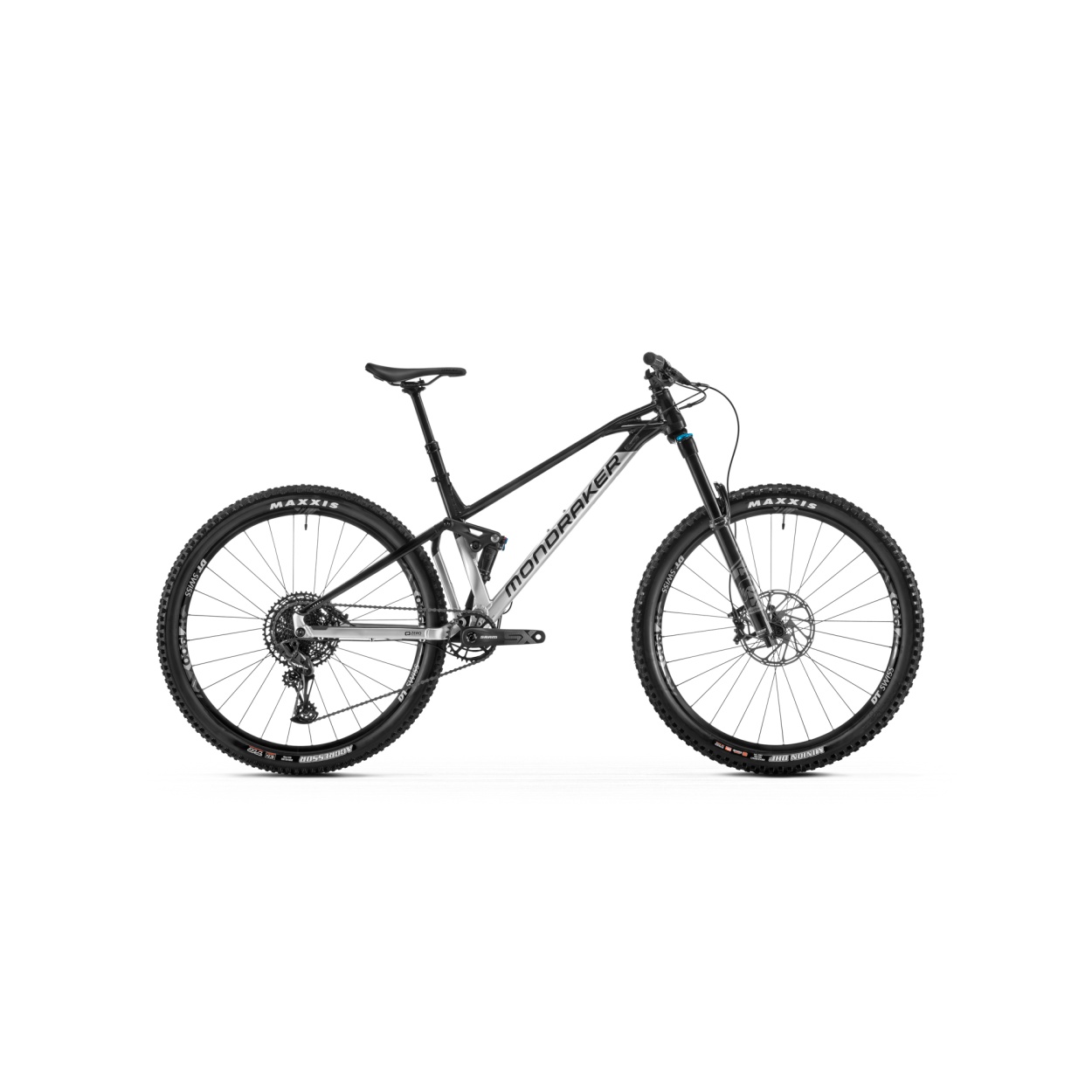

Rám: Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Velikosti: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Tlumič: Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings
Nastavení tlumiče: Light compression, extralight rebound, air volume spacer 0.6
Vidlice: Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Hlavové složení: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Představec: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Řídítka: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Gripy: ONOFF Diamond, 1lock-on, 135mm
Sedlovka: ONOFF Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
Sedlo: SDG BEL-AIR 3.0, LPU foam, steel rails
Brzdy: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brzdové páky: SRAM G2 R, tool-free reach adjust
Ráfky: DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
Dráty: DT Champion, straightpull
Přední náboj: DT 370, Boost 15x110mm, IS 6 bolts
Zadní náboj: DT 370, Boost 12x148mm, 18T ratchet LN system, IS 6 bolts,
Přední plášť: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Zadní plášť: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Kliky: SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Převodník: 32T, steel, X-Sync 2
Středové složení: SRAM DUB BSA, sealed bearings, 73mm
Řetěz: SRAM SX Eagle, 12s, Powerlock
Přehazovačka: SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Řadící páky: SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
Kazeta: SRAM PG-1210, 11-50T, 12s
Patka: Mondraker M068
Váha: 15.5 kg
